越南岘港现代乡村办公室
发布时间:2018年04月04日 点击率:
越南岘港现代乡村办公室
The Modern Village Office / Ho Khue Architects
由专筑网缕夕,李韧编译
来自建筑事务所的描述。过去城市还没发展起来的时候,孩子们都是在村庄里长大,村庄里没有便利的设施,并且较为落后。而现在,越来越多的城市人来到这里定居。他们主要居住在城市,但却怀念幼时的水泥墙,以及村子里的竹子共同营造的田园风光景象。
Text description provided by the architects. Children from centuries in the past until now were born and raised in the countryside without many amenities and little money. These are now successful city dwellers. They are now modern but have not forgotten the images and feeling of cement rooves, the low brick walls, and the bamboo that permeates the village.
© Hiroyuki Oki
© Hiroyuki Oki
美丽的田园风光深深影响着今天的老一代人。随着国家的发展,城市里出现玻璃、空调和极简设计。人们对缺乏情感的环境感到厌倦,钢筋混凝土森林如同机器般冰冷。因此,与过去的村庄一样,这个办公室的设计中也添加了可持续环境因素。
This scene has nurtured so many of today’s generation of successful people. As the country develops and they flock to urban settings surrounded by glass, air conditioning and monotonous designs. They become bored with the surroundings that lack emotions and feel a robotic sense of detachment. The Office has feeling and is environmentally sustainable, as were the villages of the past.
© Hiroyuki Oki
剖面图/Section
© Hiroyuki Oki
原来这块场地中有一些老房子,周边有白色的蒲苇、原生的竹子灌木,以及在恶劣环境条件下生存下来的植物。 Ho Khue Architects (ALPES)的设计理念是将现代艺术办公室结合自然环境,营造乡村复古怀旧的感觉。呈现外表舒缓、自然,并在建筑中种植许多本地植物。
Originally the large lot contained some old houses, white pampas grass, native bamboo shrubs, and plants that survived on the ambient conditions with little input from people. Ho Khue Architects (ALPES) design concept was to evoke the old feeling of the village in our state of the art modern office as being part of nature. Today’s appearance is soothing, natural, and contains many of the surrounding native plants in the structure.
© Hiroyuki Oki
香蕉树、黄色的灌木丛和本地植物被移植到办公室的一层。在建筑入口处还有一个水池来种植可收成的植物。建筑西南面用带有板条的装饰性混凝土建造而成,阻隔了炎热太阳的直射,并达到通风透气的效果。

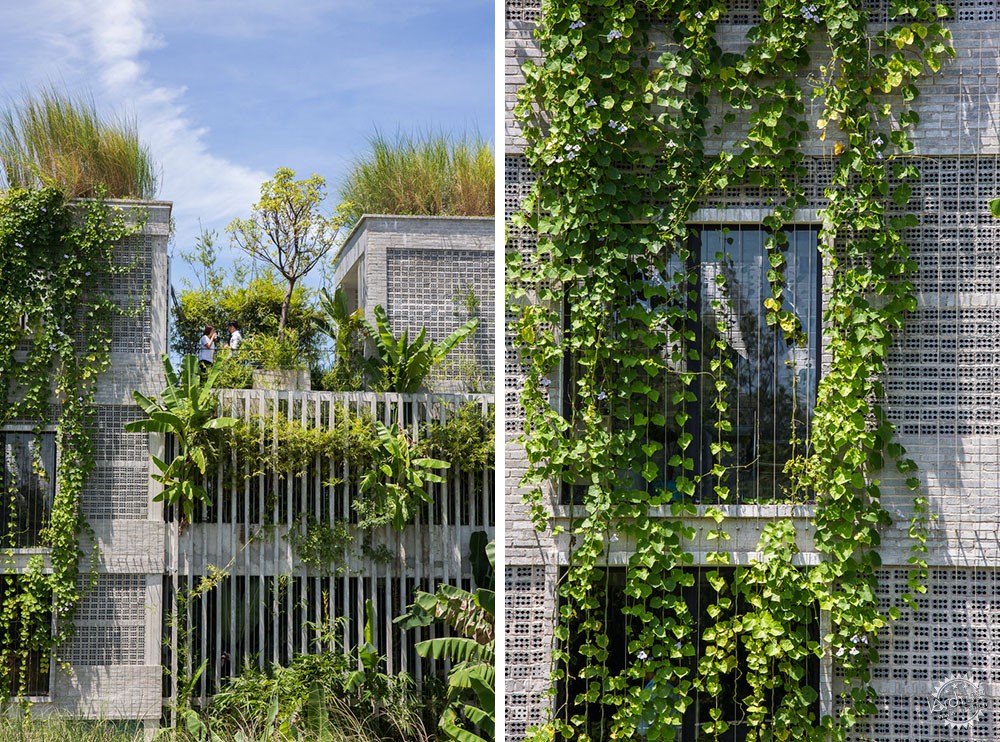

Banana Trees, yellow bushes and native plants were transplanted to the first floor of the office. There is also a water feature with slat steps at the front door with harvested plants. The southwest exposure is built with decorative concrete with slats to keep out the hot sun and allow air flow from the ocean breezes.
图解/Diagram 01
© Hiroyuki Oki
© Hiroyuki Oki
The rooftop is densely planted with the grasses and other plants to cool the lower floors. This floor houses the executive office, meeting room, and large open sided lunch room with a complete kitchen. Vining flowering plants surround the open areas to create shade and beauty. It is a professional place with natural ventilation, pleasing plantings, and comfortable environment for clients and workers.
© Hiroyuki Oki
© Hiroyuki Oki
为了重现乡村家园的氛围,建筑师使用了非传统烧结砖。地板由浅灰色混凝土瓷砖制成。水泥屋顶如同乡村建筑一般,由于它的三维结构,形成了一定的立体空间。这是一座具有永恒感的现代建筑。
In order to recreate the ambience of a countryside home we used bricks that were not burnt by the kiln. The floor is made of decorative concrete tiles with a ground light grey finish. The cement roofs appear as scaffolding as was the method of construction in the countryside. This gives depth because of its 3 dimensional structure. A modern building with an ageless feeling.
© Hiroyuki Oki
在这个现代化的办公室里工作可以唤起人们对童年的回忆,以及旧时朴素的生活。从海上袭来的风十分凉爽,带着舒适的温度,室内冷热均衡。当今年轻一代可能没有时间在乡间生活。但这个办公室却为都市人群带来了浓郁的乡村精神和灵魂。
Working in this modern office evokes feelings reminiscent of childhood and a time when life was simpler. The air flow is fresh from the sea leading to comfortable temperature without being cold. Today’s younger generation may have had little or no time in the countryside. This office has brought the spirit and the heart of the rural areas to the workplace.
© Hiroyuki Oki
© Hiroyuki Oki
© Hiroyuki Oki
© Hiroyuki Oki
© Hiroyuki Oki
© Hiroyuki Oki
位置图/Location
一层平面图/First Floor Plan
二层平面图/Second Floor Plan
三层平面图/Third Floor Plan
四层平面图/Fourth Floor Plan
屋顶平面图/Roof Plan
立面图/Elevation 01
立面图/Elevation 02
立面图/Elevation 03
• 建筑事务所:Ho Khue Architects
• 项目位置:越南,岘港
• 主创建筑师:Ho Khue
• 建筑面积:350平方米
• 项目年份:2016年
• 摄影:Hiroyuki Oki
• 制造商:Jotun, YKKap
• Architects: Ho Khue Architects
• Location: 297 Ngo Quyen Street, An Hai Bac Ward, Son Tra District, Danang City, An Hải Bắc, Sơn Trà, Đà Nẵng, Vietnam
• Lead Architects: Ho Khue
• Area: 350.0 m2
• Project Year: 2016
• Photographs: Hiroyuki Oki
• Manufacturers: Jotun, YKKap
